Cleaning·Scraper conveyor Ready to ship

TSN.3B

Plate-type demountable chain — a modular system assembled on-site. Plates made of St.5ps, pins made of St.45 with heat treatment.

Chain type
Demountable plate-type
Pin material
St.45, HT
Maintainability
High
  • Factory warranty · spare parts in stock
  • «Made in Ukraine» programme participant
  • Technical passport and documents on request

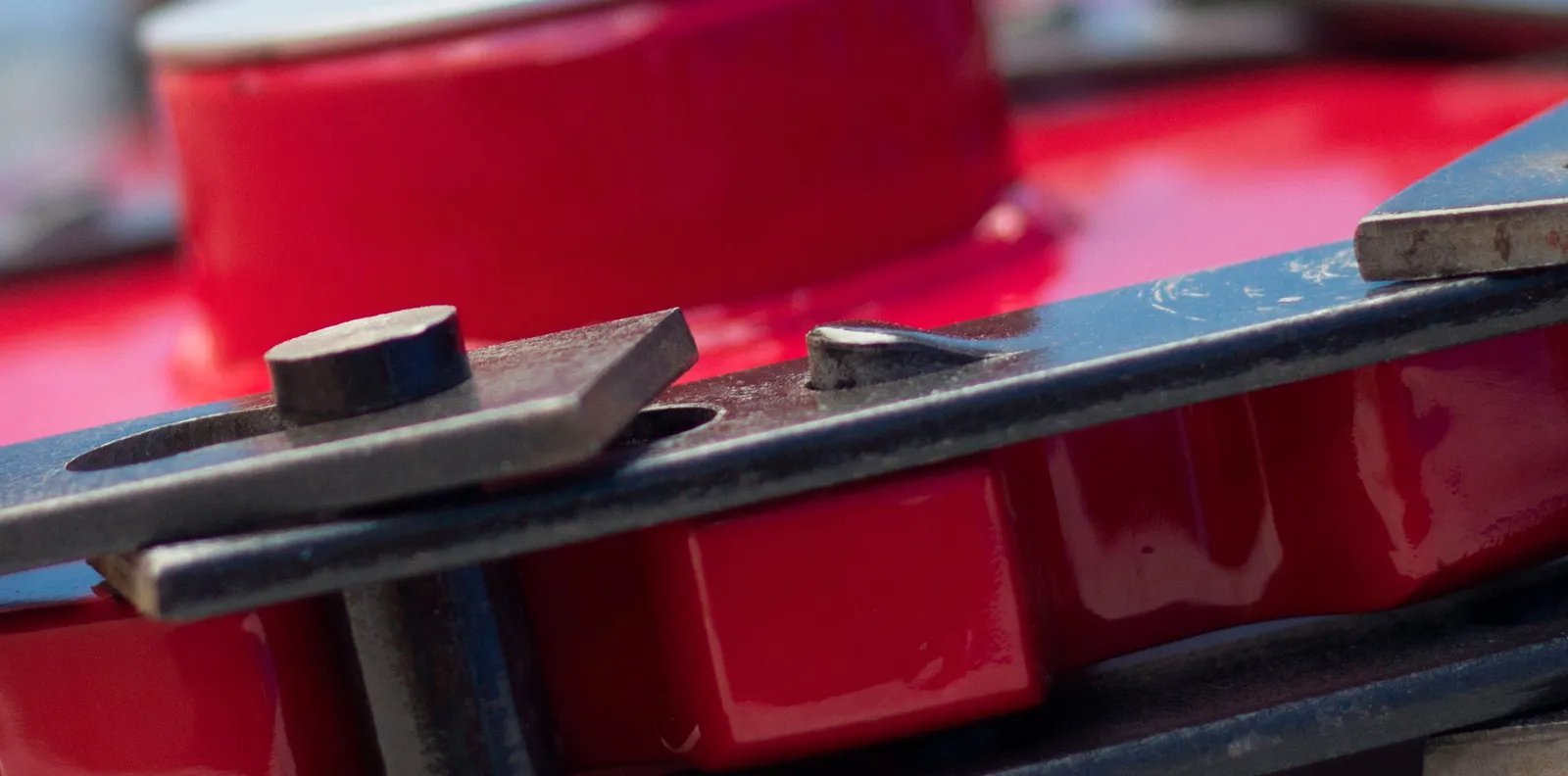

The TSN.3B conveyor is a kit assembled into a chain directly at the installation site.

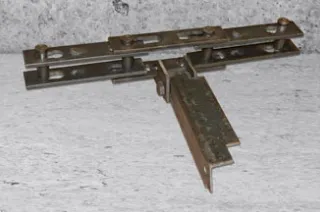

The TSN.3B chain consists of plates, pins, brackets, and scrapers.
We stamp the TSN.3B chain plates from hot-rolled St.5ps grade steel strip (with increased carbon content).
We manufacture TSN.3B pins from St.45 grade steel and heat-treat them, which extends the service life of the drive circuit.
Chain scrapers are made from a hot-rolled 50 mm by 50 mm angle section with a thickness of 4 mm.
We produce TSN.3B conveyor sprockets from 25 mm thick hot-rolled steel plate. These sprockets are plasma cut.
Spare parts

Spare parts for this machine — TSN.3B

Pick a unit, open the interactive scheme, or go to the shop with all compatible parts.

FAQ

Quick answers

The most common questions about warranty, delivery, installation and service.

TSN.3B is covered by a 12-month warranty from commissioning. Service is provided by our own service department.
