Cleaning·Scraper conveyor Ready to ship

TSN.160A

Modification A with a 14×80 round-link chain made of 23G2A steel, HRC 30. The most common TSN model in its class.

Chain
14×80, 23G2A steel
Hardness
30 HRC
Breaking load
24 t
  • Factory warranty · spare parts in stock
  • «Made in Ukraine» programme participant
  • Technical passport and documents on request
TSN.160 conveyors consist of a round-link chain with welded brackets to which scrapers are secured with hardware fasteners.

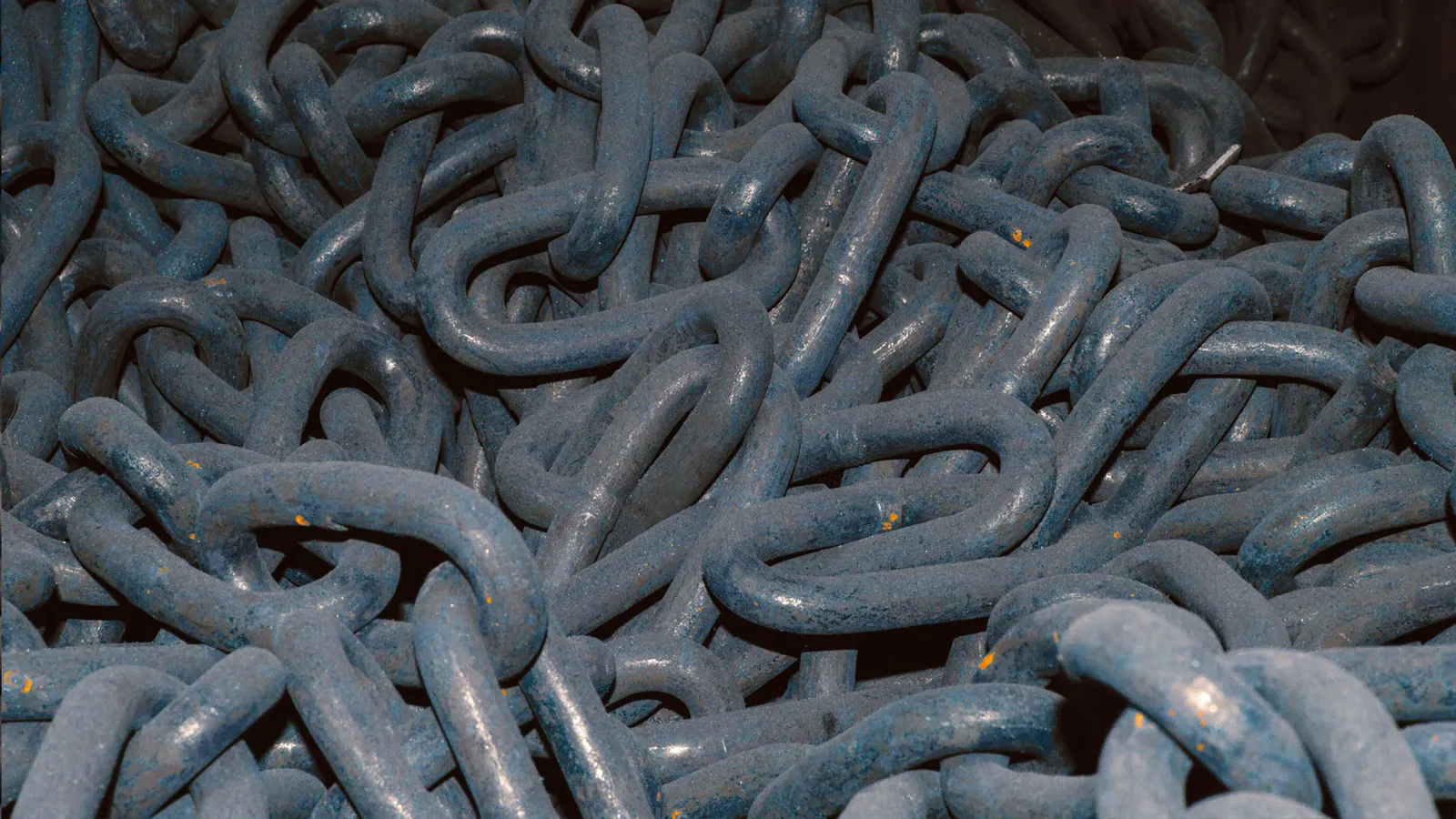

In TSN.160 conveyors, we use a hardened, calibrated 14*80 chain made of grade 23G2A steel with a hardness of 30 HRC, strength class 8. Its tensile breaking load is 24 t.
TSN.160B conveyors are a subspecies of the TSN.160 conveyor, in which scrapers have a floating mount on the side of the chain (scrapers are bolted to the bracket with a single bolt via a spacer sleeve).
TSN.160A conveyors are also a subspecies of the TSN.160 conveyor, in which scrapers have a rigid mount at the bottom or top of the chain (scrapers are bolted to the bracket with two fasteners).

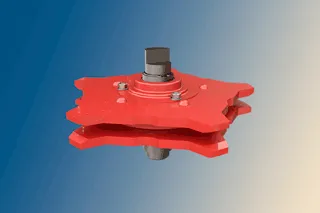

For the version with the scraper at the bottom of the pull loop, we manufacture corner sprockets on an extended axle.
The product range also includes TSN.160A corner rollers, originally designed by the Haleshchyna plant. This type of roller is only suitable for the TSN.160A chain subspecies with the bottom scraper position.
Spare parts

Spare parts for this machine — TSN.160A

Pick a unit, open the interactive scheme, or go to the shop with all compatible parts.

FAQ

Quick answers

The most common questions about warranty, delivery, installation and service.

TSN.160A is covered by a 12-month warranty from commissioning. Service is provided by our own service department.
