Transport·Tipping semi-trailer, 5 t Ready to ship

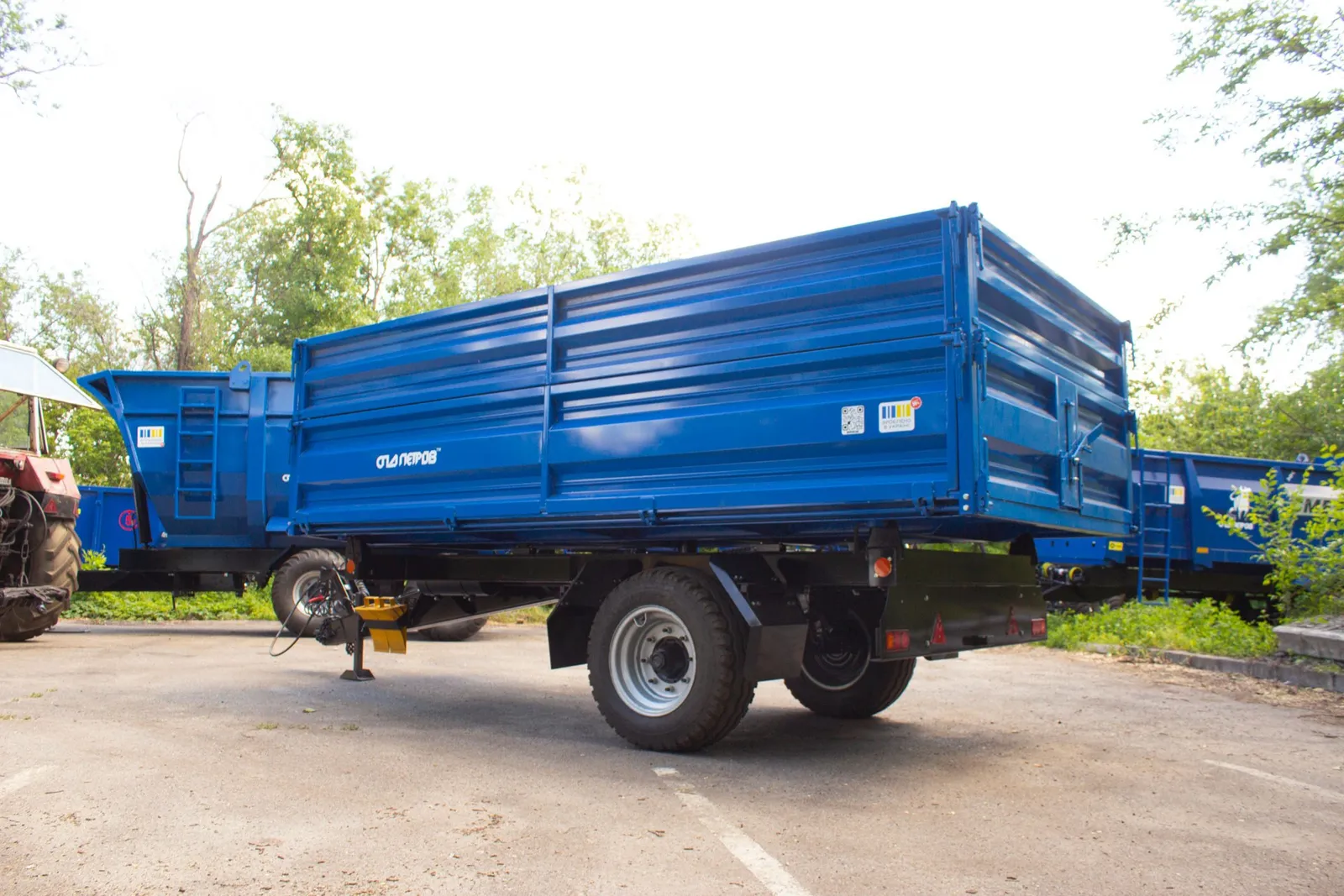

1PTSB.5 BARKAS Trailer

Tractor tipping semi-trailer with 3-way unloading and a 50° body lift angle. A more maneuverable and cost-effective alternative to 2PTS-4.

Load capacity
5 t
Body volume
5.8 m³ (up to 10.6 with extension boards)
Unloading
3-way
  • Factory warranty · spare parts in stock
  • «Made in Ukraine» programme participant
  • Technical passport and documents on request
 BARKAS is a tractor tipping semi-trailer with a side board system and three-way unloading system. The trailer has a body tilt angle of 50° both to the sides and to the rear.
The 1PTSB.5 trailer is the most cost-effective alternative to the 2PTS-4 trailer. BARKAS is more maneuverable, more powerful, more convenient, and more versatile than the standard 2PTS-4.
The 1PTSB.5 trailer features a single-circuit pneumatic brake system (in the standard configuration) and is supplied with a complete set of documents for state registration.

Features of the BARKAS trailer:

1. Maneuverable
The trailer features a single-axle unsprung suspension manufactured by the global leader ADR System (Italy). Therefore, the trailer is maneuverable and can operate in the most confined spaces where conventional PTS trailers cannot.
2. Heavy-duty
BARKAS features a rectangular frame made of hot-rolled channel bars, unlike imported counterparts that have a triangular frame. This ensures the reliable transport of loads up to 5 t.
3. Convenient
By default, the trailer features 3-way tipping: to the sides and rear. The tipping angle is identical for all three sides — 50 degrees. Side tipping is restricted by a safety hydraulic valve. рюючи кузова причепа на плоску платорму. The rear board is equipped with a slide gate, allowing for accurate unloading of bulk cargo. The trailer is coupled with tractors from 55 hp, features a forged certified towing eye Ø50 mm, 18-inch rims, and 13.0/65-18 16PR TL or 15.0/70-18 16PR TL tires.
4. Universal
The 1 PTSB.5 trailer features a single-circuit pneumatic system (as standard) and is supplied with a complete set of documents for state registration. Various extension board designs are available as options. The trailer dropsides open both top-to-bottom via fast-system handles and bottom-to-top via a central lock on the sides and fast-system handles at the rear. The dropsides and their uprights are also removable, transforming the trailer.

Design features

  • Маневрений. Одновісна безресорна підвіска виробництва світового лідера ADR System (Італія) — причіп працює у найнезручніших місцях для звичайних ПТС.
  • Потужний! Рама з гарячекатаних швелерів прямокутної форми (на відміну від імпортних аналогів із трикутною рамою) дозволяє впевнено перевозити вантажі вагою до 5 т.
  • Зручний. Вивантаження на 3 сторони вже в базі: по боках і позаду. Кут вивантаження однаковий для всіх трьох сторін — 50°. Бокове вивантаження обмежене страхувальним гідравлічним клапаном.
  • Універсальний. Борти відкриваються як зверху вниз (ручки fast-system), так і знизу вгору (центральний замок по боках та ручки fast-system позаду).
FAQ

Quick answers

The most common questions about warranty, delivery, installation and service.

1PTSB.5 BARKAS Trailer is covered by a 12-month warranty from commissioning. Service is provided by our own service department.
